This double slanted off side plywood rack fits the 2002 onwards L1 (short wheelbase) VW Transporter
This fits the following Transporter models: T6, T5, T32, T30 & T28.

This does not fit the T4 model.

This is two separate units, manufactured from 15mm plywood on our in-house CNC machine
Approx. overall dimensions: 1945mm Long x 1220mm High x 400mm Deep, with 82mm front retaining lips where required

Rear door end unit: approx. 970mm overall long & 950mm internally

Floor to first shelf approx. 400mm
First shelf to second shelf approx. 335mm
Second shelf to third shelf approx. 320mm

Slanted unit at bulkhead end: approx. 970mm overall long & 950mm internally

Floor - first shelf clearance approx. 213mm at the front & approx. 140mm at the rear
First - second shelf clearance approx. 211mm
Second - third shelf clearance approx. 216mm
Third - fourth shelf clearance approx. 215mm
Fourth - fifth shelf clearance approx. 215mm
We offer free fitting at our Milton Keynes workshop Mon - Fri 08:30am - 3pm, this is pre-bookable and can be arranged by calling our office on 01908 270127 Mon - Fri 8am - 4pm.

This can be dispatched, flat packed with all assembly/installation fixings & instructions, assembly is required.

P&P costs shown are to mainland UK only, some areas of Scotland & Highlands incur a delivery surcharge, please contact our office for these costs.

We are unable to dispatch to the Channel Isles & Ireland.

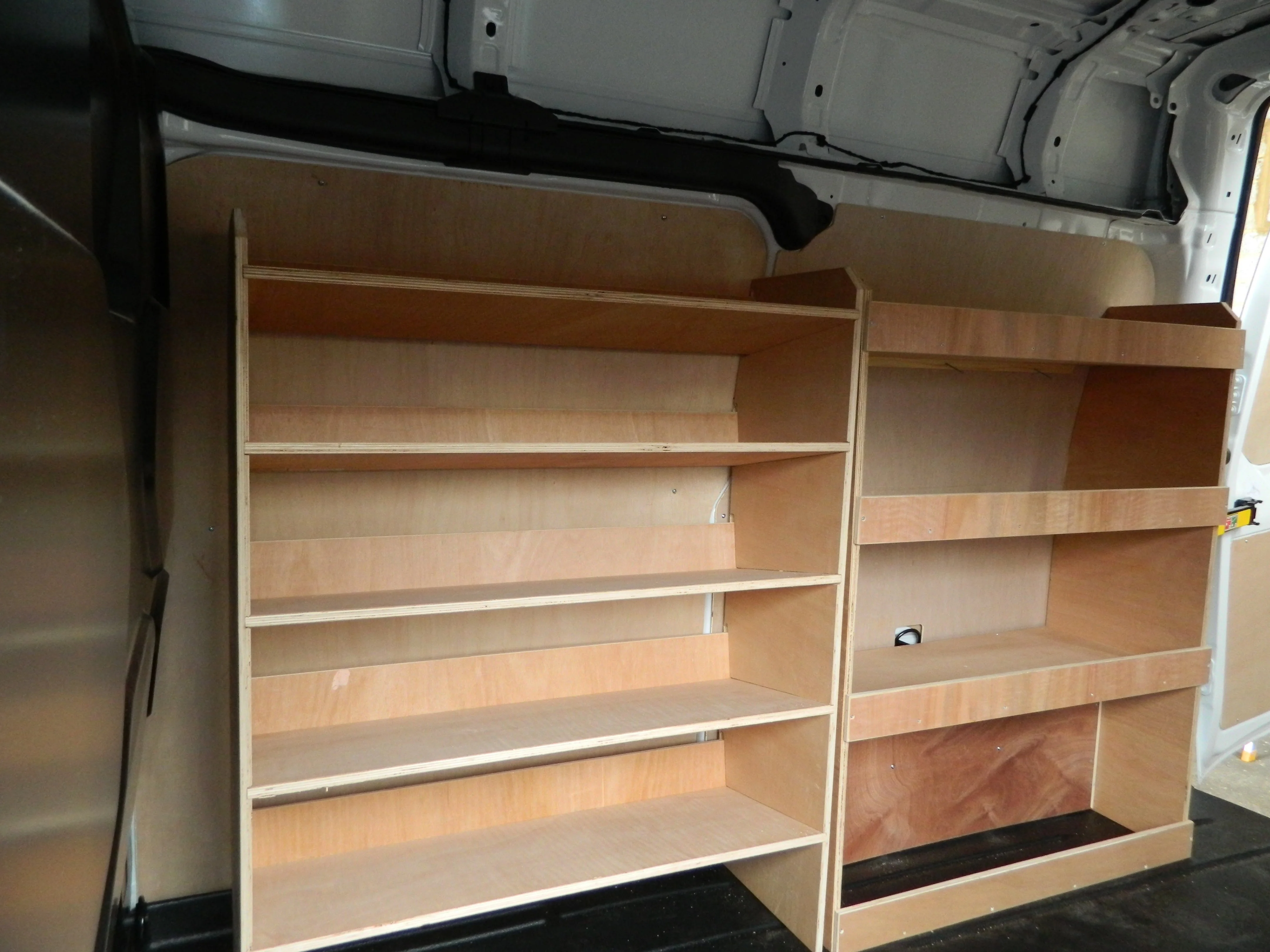

 *Please note - picture for illustration purposes only*
